K (Kappa) is a lightweight medium-sized line array speaker . It consists of 5 ne...
Product details

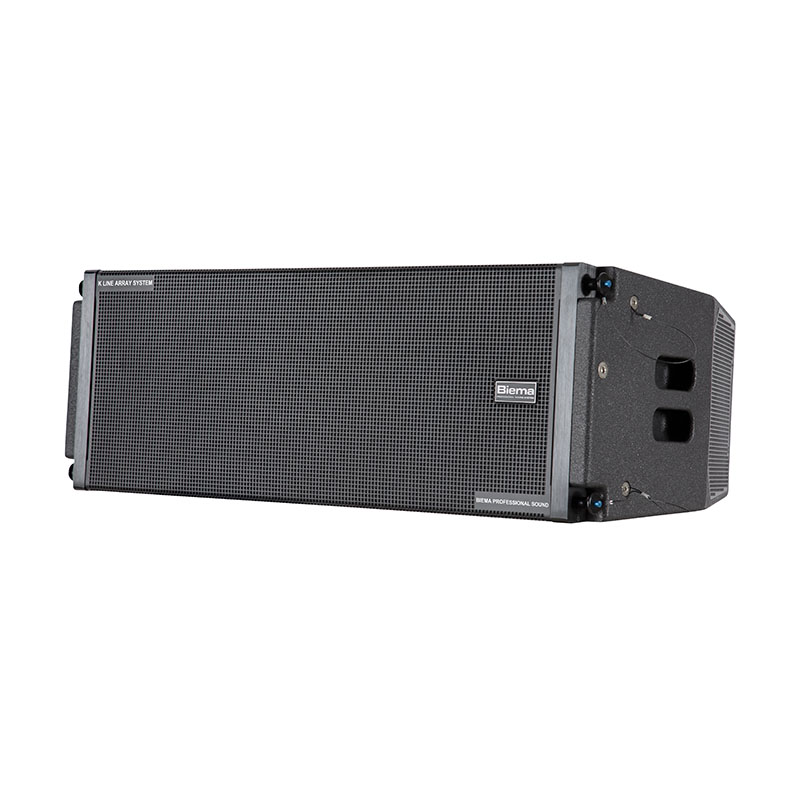

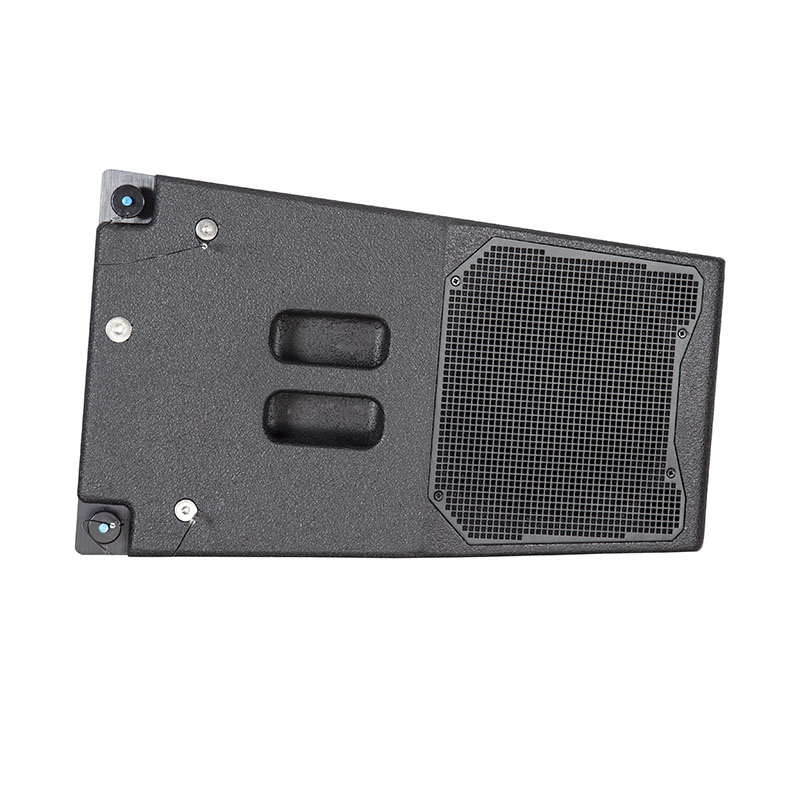

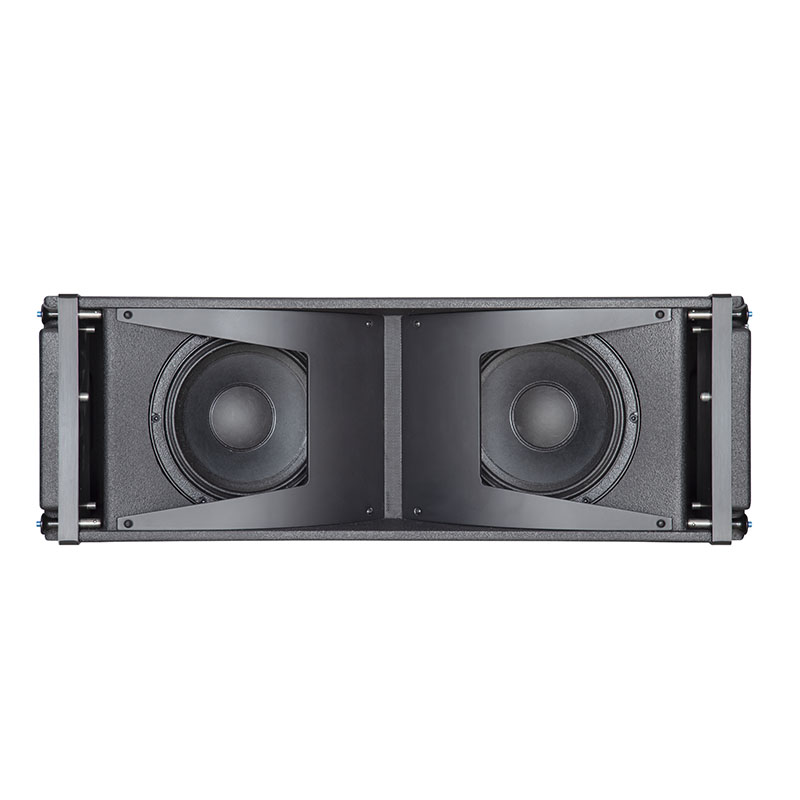

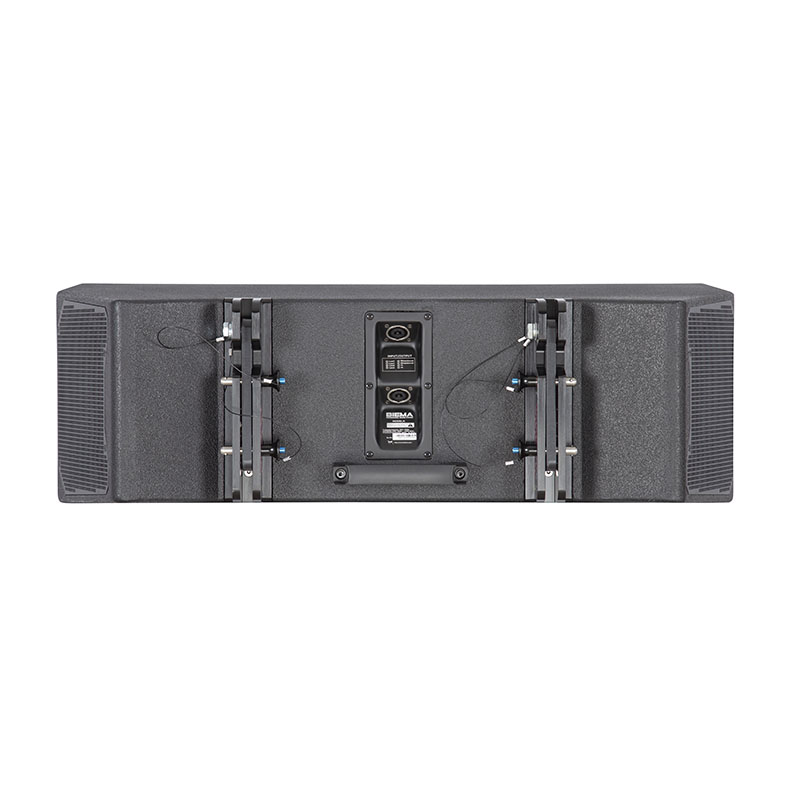

K (Kappa) is a lightweight medium-sized line array speaker . It consists of 5 neodymium drivers, tailored with an optimized compact cabinet and an aluminum alloy rigging hardware. It is suitable for mobile performances and medium to large events.

A patented constant directional plate in the MF part, paired with a linear wave guide provides uniform 100 degree horizontal coverage throughout the entire frequency range, while outputting impressive ultra-low distortion sound pressure levels.


· Extremely high sound pressure level

· IP54

· Patented aluminum alloy rigging hardware

· 1x3” neodymium compression driver

· 2 x 10 "high-power neodymium woofer

· 2 x 8 "directional controllable neodymium woofer

· Environmentally friendly sand texture

· Patented HF horn

· Frequency response 52-20KHz

· Cardioid subwoofer coverage optional

· Horizontal arrayable


Frequency response

52Hz-20KHz

Drivers

HF 1x1.3"neodymium compression driver

Coverage controllable woofer: 2x8"neodymium (65mm

voice coil)

LF 1:1x10"(65mm voice coil)

LF 2:1x10"(65mm voice coil)

Dispersion

H100°xV8°

Impedance

LF1 8ohm

LF2 8ohm

Coverage controllable woofer 8ohm

HF 8ohm

Rated power(RMS)

LF 1 300W

LF 2 300W

Coverage controllable woofer 500W

HF 100W

Peak power

LF 1 1200W

LF 2 1200W

Coverage controllable woofer 2000W

HF 400W

Max SPL

LF 1 1200W

LF 2 1200W

Coverage controllable woofer 2000W

HF 400W

Max SPL

LF 1 134dB

Coverage controllable woofer 133dB

HF 136dB

Connectors

2x8-pin Speakon

Suspension anagles

0°,2°,4°,6°,8°

NW

48kg

Dimensions (WxDxH)

900x522x319mm
