· Input: 14MIC/Line+2line+USB playback+ Optic fiber +S/PDIF.

· Output: L/R+6BUS++2AUX+Headphone+USB recording.

· 7”resistive touch screen with a resolution of 1024x600.

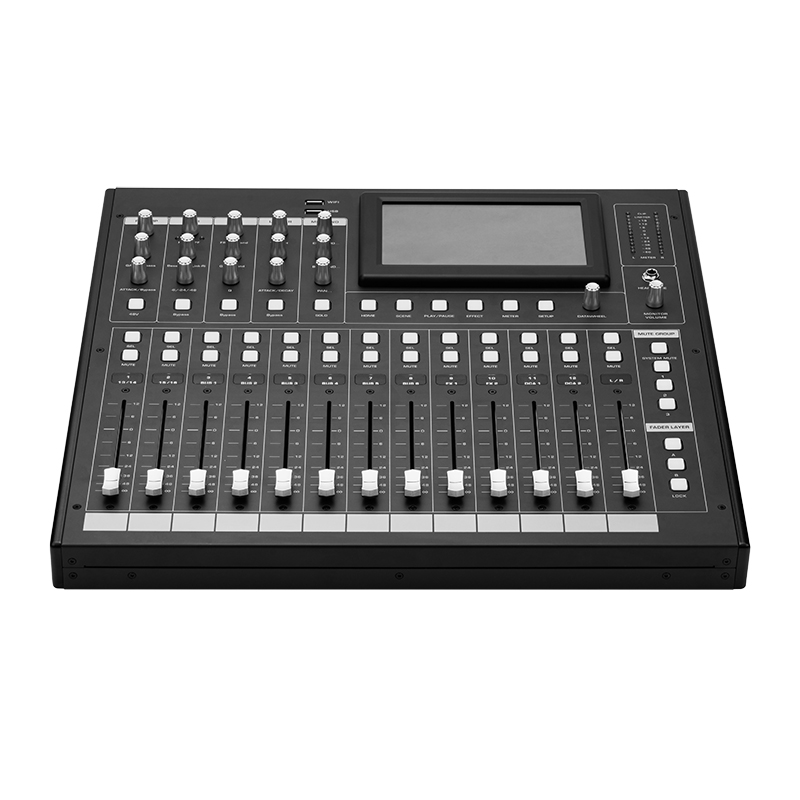

· 13pcs of 100mm electric faders.

· Chinese and English interface can be switched at any time without restarting.

· Built-in USB recording and playback functions.

· Accepts APE, FLAC, MP3, WAV lossless audio signals.

· USB player can recognize Chinese song names.

· Built-in 2 to 16 independent channels feedback suppressors.

· Integrated speaker management.

· Open third-party control protocols TCP/IP, RS-232 control instructions.

· IPad touch screen full function control, real-time data synchronization.

· Optional WIFI hotspot;Built in 2 effector modules;2 DCAs.

· Support simultaneous control of 8 terminals.

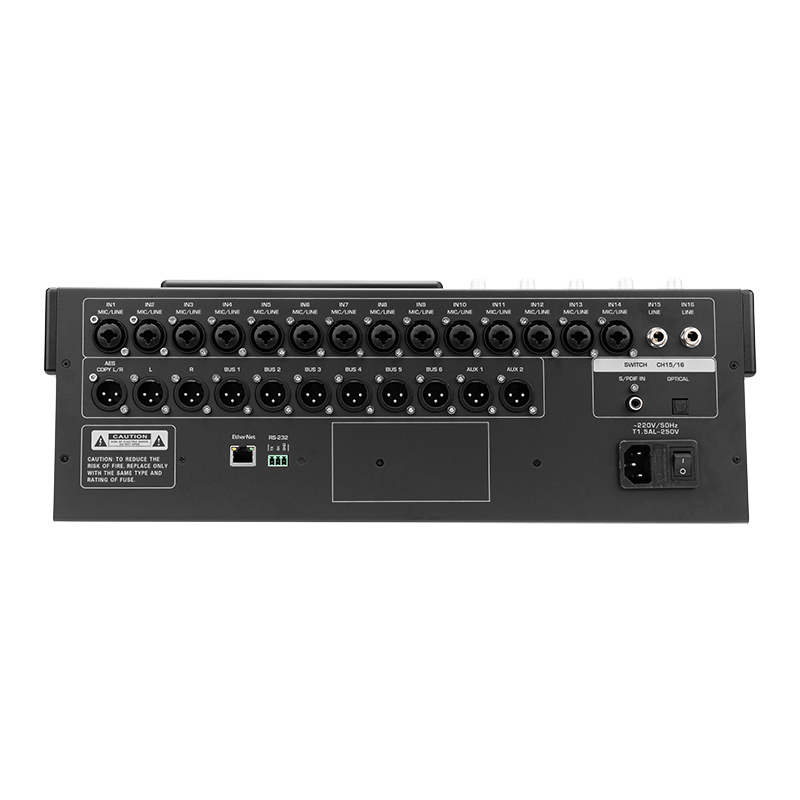

· Balanced input and output XLR for wiring.

· 8 fader groups, 1 system mute button, and 3 fast mute buttons.

· ARM firmware and DSP firmware can be upgraded through

the network or USB.

· Each input channel has 4 segments of PEQ, noise gate, feedback suppressor, high and low pass, limiter and phase inversion.

· Each output channel has 8 segments of PEQ, high low pass, compression, phase inversion, and 1.8s delay.

· Output channels L/R, 6 BUS, 2AUX, Head Phone (L/R).

· Pre fader and post fader (PRE/POST) are available at the 6 BUS and 2AUX mixing buses.

· Support 100 sets of scene preset functions, which can be exported and imported into USB memory for easy data backup.

· 100 PEQ modes storage.

· Built in signal generator: sine wave, pink noise, white noise.

· Channel parameter copying function, allowing for rapid data replication across the same channel.

· Equipped with panel locking button (to prevent accidental operation).

· Customized channel name.
