WM400

· Compliant with international standards IEC60914 and GBT15381-94.· Developed ba...
Product details

·Equipped with a high-definition 2.4-inch color display screen and independent button operation. It uses digital technology as its core and features a high-performance CPU, supporting discussions.

·Upon system startup, it automatically detects the chairman and delegate units. Powered by a high-performance switching power supply, long-distance transmission has no impact on sound quality. The anti-interference circuit design eliminates any interference from mobile phone signals.

·It supports up to 120 units in standby mode simultaneously, with a maximum of 30 units per channel. The chairman unit can be connected to any channel. It also has a central control RS-232 interface for connection to the central control system.

·The unit has a high-end aluminum panel design. The conference unit features a display for speaking and listening time, giving full control at a glance.

·The conference units use traditional 8-core wire connections as well as network connections. Dual connection options offer greater flexibility.

·The conference seat button features a bi-color light guide design. The button is green when speaking, and red when listening.

·The podium can be easily adjusted for height and angle, making operation more convenient.

·This system supports video tracking functionality, with each unit having a preset video tracking point. It allows for selecting corresponding cameras and channels. It supports multiple camera protocols, which can be customized based on customer requirements. The system can support up to 8 cameras.

·The system includes several modes: (First-come, First-served mode), (Last-come, First-served mode), (Fully open mode), (Chairman mode), and (Speech restriction mode). The system supports up to five speech combinations, totaling 60 configurable options.

·The system supports up to 12 units speaking simultaneously, with the speaking delegate units able to be set anywhere between positions 1-12.

·The system allows for automatic microphone shutdown when not in use or scheduled speaking, with time settings adjustable from 1 to 999 seconds. The host and computer can connect via USB for local communication, and the system can be configured using PC software.



Model

WM400

Power Supply

AC110V-220V/50Hz

Frequency Response

20Hz-20kHz

Signal-to-Noise Ratio

>96dBA

Total Harmonic Distortion

<0.05%

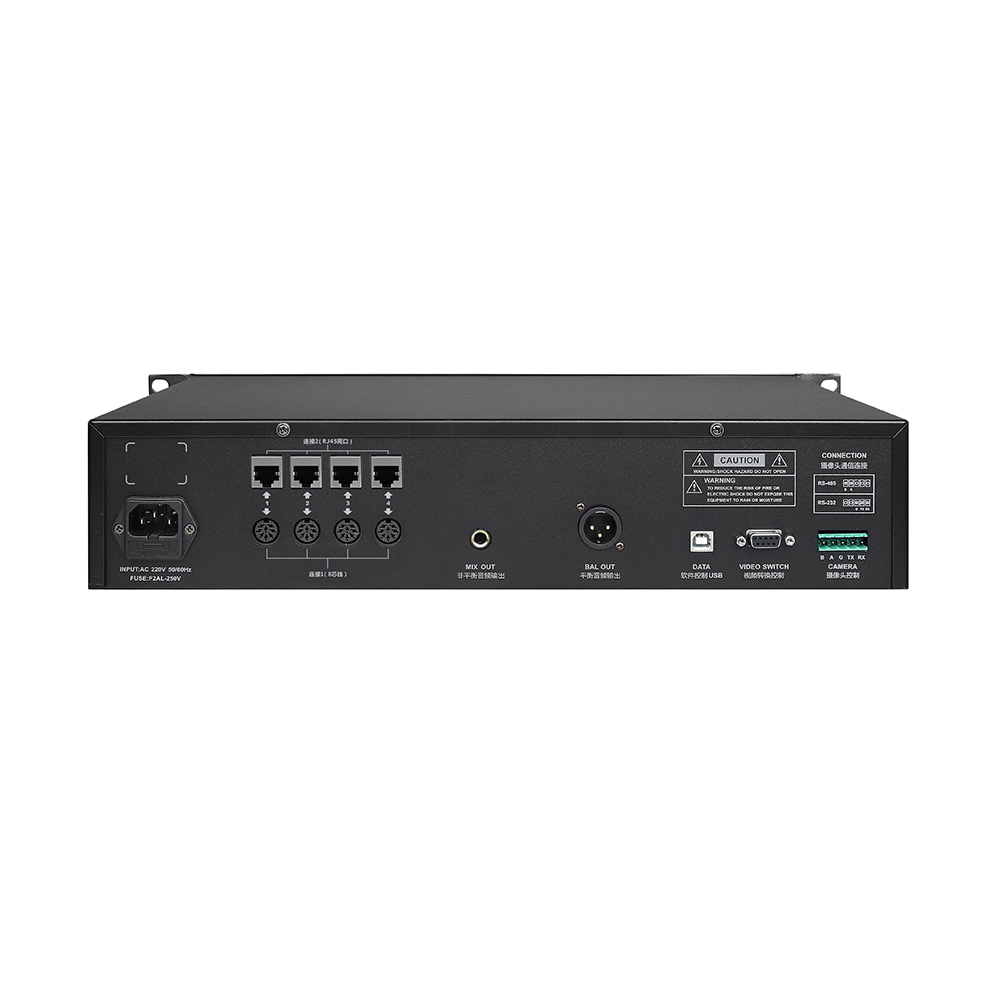

Microphone Unit Interface

4 x Round DIN-8 socket, 4 x RJ45 network interfaces

Central Control Connection

1 x RS232 serial port

Audio Output

1 x 6.35mm jack, 1 x XLR balanced socket

External Dimensions

483 × 310 × 90mm

Color

Gray-black

Installation Method

Installation Method: 19-inch standard rack mount
